Sangoma VEGA-VS0164(100G)
Vega 100G
ตัวแปลงสัญญาณดิจิตอลจากคู่สาย E1/T1 กรณี E1 รองรับ 30 คู่สายสนทนา กรณี T1 รองรับ 24 คู่สาย
ตัว Gateway รองรับการเชื่อมกับตู้สาขาโทรศัพท์ทั้งแบบ IP หรือเชื่อมกับตู้สาขารุ่นเก่าผ่าน E1 Interface ได้

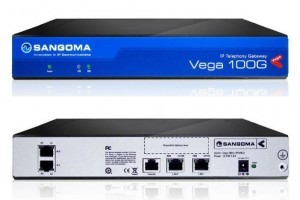

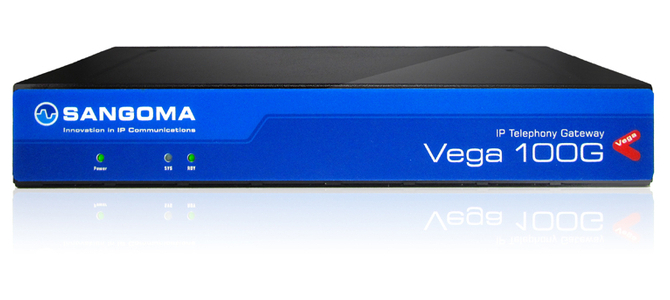

Sangoma’s Vega 100G VoIP Digital Gateways are a single port T1/E1/PRI appliance supporting up to 30 simultaneous calls.
- Web GUI for configuration and troubleshooting
- Featuring Quick Wizard for rapid deployment
- Onboard DSP for media translation
- Interoperable with most legacy and VoIP carriers worldwide
- Advanced flexible call routing with automatic failover and bypass routing
- Built in Local Suitability in the case of WAN failure
Solutions of Vega Gateway
Enterprise VoIP Networking
Use a Vega VoiP gateway to allow site to site networking for toll bypass between sites or to connect legacy and new infrastructure together.

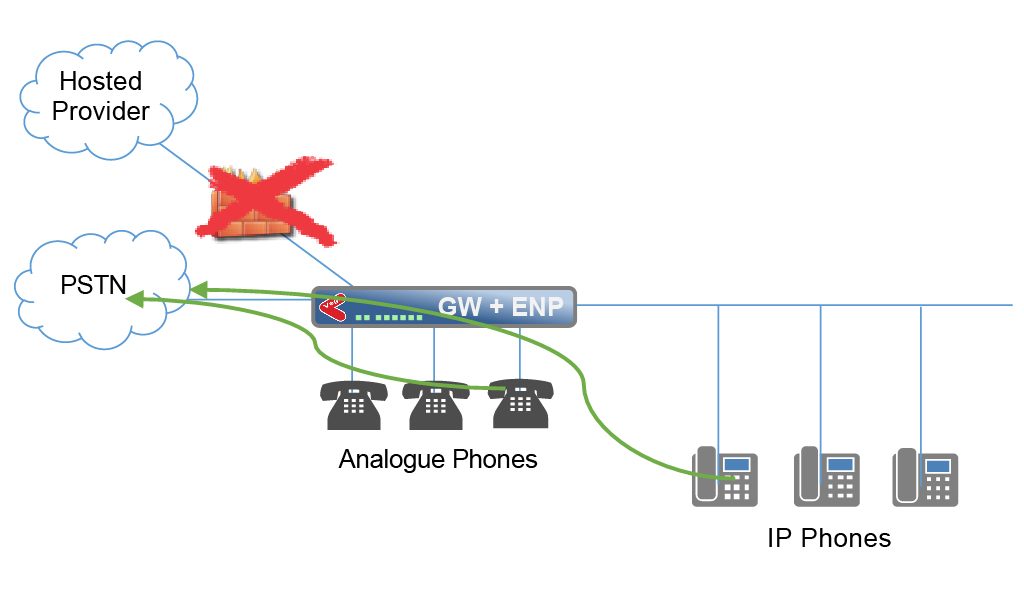

Local Survivability
Using Enhanced Network Proxy (ENP) feature allows for local survivability of IP telephones. In case of SIP failure those onsite phones can talk to each other, the PSTN (if connected) and place emergency calls. Discover More

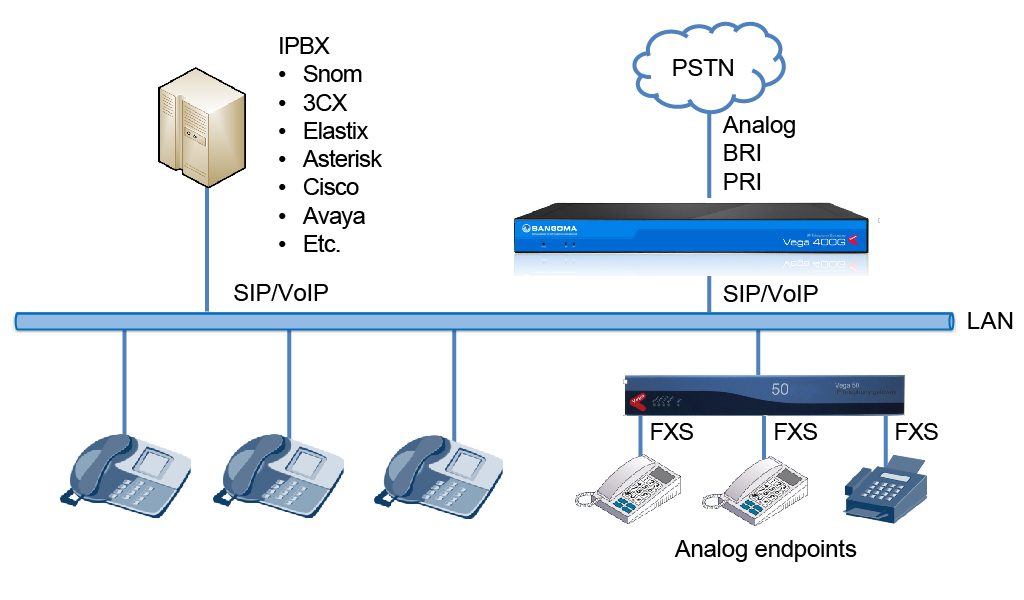

Low Density PSTN
Connect your offices fax machines, door entry and modems to your company’s IP-PBX. Discover More
PSTN connectivity for MS Lync / SFB Infrastructure
Vega VoIP Digital Gateways qualified and tested for use with Microsoft Lync allow Lync to reliably and securely connect to PSTN trunks and legacy PBXs.

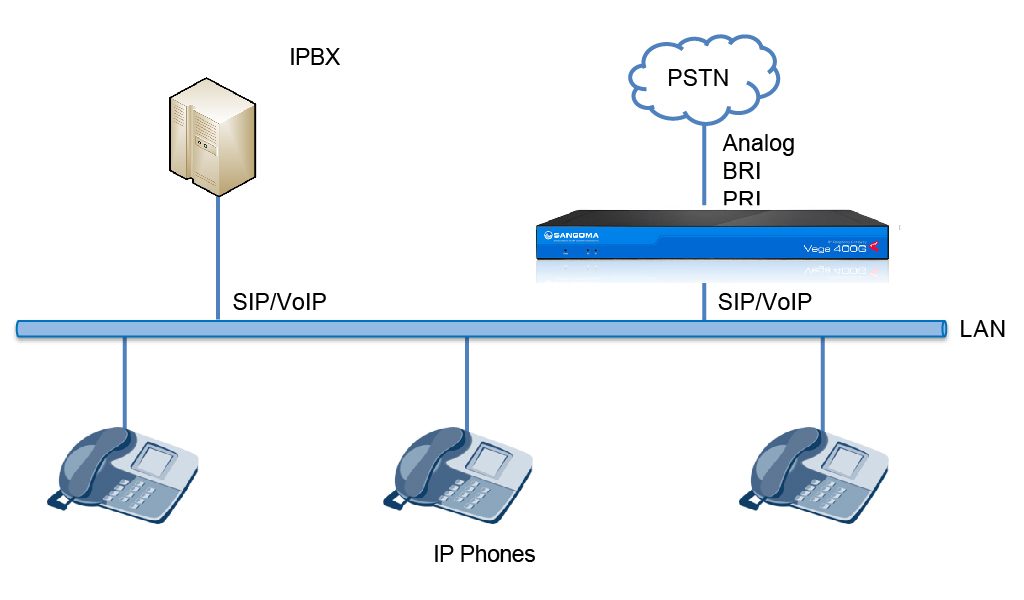

PSTN Trunking
Use a Vega VoiP digital gateway to allow IP-PBX to route calls to traditional PSTN connections like PRI, BRI or analogue. Could be primary route or for resilience.
SIP Trunking
Vega VoIP Digital Gateways allow traditional, legacy TDM based PBXs to replace expensive connections like PRI (E1T1) BRI or analogue with SIP trunking to allow reduced call costs, reduced line rental, and bring extra flexibility and disaster recovery.
VoIP Digital Gateway Features
- Caller ID presentation
- Caller ID screening allows connections to be accepted only from selected call sources
- SIP Registration & Digest Authentication
- Adaptive jitter removal
- Comfort noise generation
- Silence suppression
- 802.1p/Q VLAN tagging
- Differentiated Services (DiffServ)
- Type of Service (ToS)
- QoS statistics reporting
- Echo cancellation (G.168 up to 128ms)
- HTTP(S) Web Server
- RADIUS Accounting & Login
- Remote firmware upgrade:
- Auto code upgrade
- Auto configuration upgrade
- SNMP V1, V2 & V3
- TFTP/FTP support
- VT100 – RS232
- Management – HTTPS, SSH, Telnet
- Configurable user login passwords
- SIP/TLS and SRTP
- Dial Planner – sophisticated call routing capabilities, standalone or gatekeeper/proxy integration
- Direct Dialing In (DDI)
- SIP registration to multiple proxies
- NAT traversal
- Hardware failover using port bypass (Vega 400G only)
- Local Survivability – Business Continuity during WAN/SIP outage
VoIP Digital Gateway Specifications
Interfaces
- SIP
- Fax support – up to G3 FAX, using T.38
- Modem support – up to V.90, using G.711
- VoIP channel capacity:
- Vega 100G:30
- Vega 200G:60
- Vega 400G up to 120
- Vega 50 BRI
- 2 BRI interfaces (4 channels)
- 4 BRI interfaces (8 channels)
- 8 BRI interfaces (16 Channels)
- Audio Codecs:
- (a-law/µ-law) (64 kbps)
- G.723.1 (5.3/6.4 kbps)
- G.729a (8kbps)
- G.726
- T.38
Primary Rate ISDN (User configurable NT/TE):
- T1
- NI1/NI2
- AT&T 5ESS
- CAS (RBS)
- DMS100
- ISO QSIG
- CAS Private Wire (*400G)
- E1
- Euro-ISDN
- ISO QSIG
- VN4
- CAS R2MFC
- CAS Private Wire (*400G)
- BRI
- 2, 4 or 8 S/T interfaces presented on RJ45
- Point-to-point or point-to-multipoint
- Each interface can be configured NT or TE
- ETSI, VN4, ISDN
- NI1, NI2, AT&T 5ESS, DMS100
- ISO QSIG Basic Call and QSIG Feature Transparency
- Channel Associated Signalling (CAS)
- R2 MFC
- 2x RJ-45, 1000BaseT / 100BaseTx / 10BaseT, full / half duplex
Hardware
- EMC (CLASS B)
- EN55022
- EN55024
- FCC Part 15
- AS/NZS3548
- TELECOMS (ISDN)
- E1: TBR4
- BRI: TBR3
- T1: FCC Part 68
- T1: CS-03
- VCCI
- Safety
- EN60950
- IEC60950
- UL60950
- AS/NZS60950
- Vega 100G/ 200G
- 70mm (W) x 155mm (D) x 43mm (H)
- Weight: 1.20kgs (2.64lbs)
- Rackmount ears supplied: 107mm (2-pieces)
- Vega 400G
- 437mm (W) x 153mm (D) x 43.5mm (H)
- Weight: 1.97kgs (4.35lbs)
- Rackmount ears supplied
- Vega 50 BRI
- 299.73mm (W) x 237.06mm (D) x 44.45mm (H)
- Weight: 1.02kg (unit only)
- Rackmount ears supplied
- Vega 100G/ 200G
- External AC-to-DC power brick 100..240 VAC, 47..63 Hz, 1..0.5 A
- Vega 400G
- Internal PSU 100..240 VAC, 47..63 Hz, 1..0.5 A
- Vega 50 BRI
- External AC-to-DC power brick 100..240 VAC, 47..63 Hz, 1..0.5 A
- Power
- ISDN: NT/TE & link up
- LAN: Speed/activity
- 0° .. 40°C
- 0% .. 90% humidity (non-condensing)
